Description:

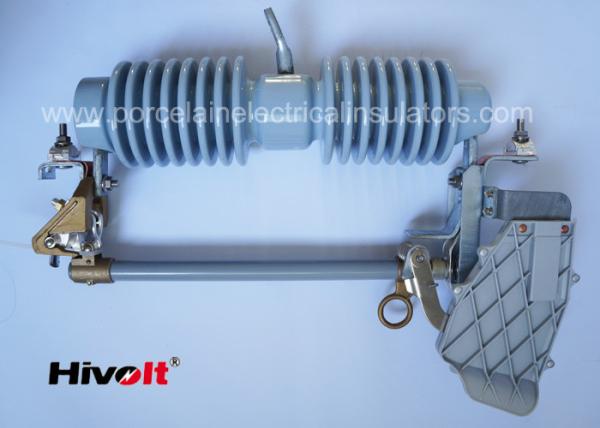

product name :36KV 200A 175BIL porcelain dropout fuse cutout loadbreak type with arc extinguisher and paralell groove connector

Rated Voltage: 36 kV

Rated Current : 200A

Breaking Capacity : 8kA

(Symmetrical current interruption)

Power Frequency withstand voltage (dry) : 70kV

Impulse Voltage : 175 kV

Leakage distance : 660mm

Connector type : paralell groove connector

HIVOLT porcelain fuse cutout made of high performance components:

the porcelain body use high strength porcelain C-130 ,glaze color can be grey , brown or white .

the porcelain have excellent mechanical & electrical performance. all steel parts are hot-dip galvanized .

Conductive parts use material copper, bronze or brass , it depends on customer’s requirement.

The fuse cutout are suitable for 35KV lines , such product have widely usage in American countries .

we export huge quantity to USA , South American countries , Caribbeans .

Applications:

Used for distribution lines steel or wooden crossarm.

Competitive Advantage:

we offer 2 years quality guarantee after shipment .

we chose high strength porcelain material as insulation body , Min. cantilever strength are more than 15kN.

Very competitive price will be great helpful for your budgut !

Dalian Hivolt Power System Co.,Ltd.  is a reputable insulator manufacturer . It was set up in year 1990 with product range of porcelain insulators , composite insulators ,and relevant metal fittings for transmission & distribution lines. We get power from more than 400 diligent staff and 50 experienced engineers .

we look the quality as our company Life ,and keep improving products quality . we strictly control the whole manufacturing process according to ISO 9001 : 2008 edition ,and focus on each quality details from raw material to insulators performance test .the powerful test facilities can make sure that each product under control.

We can supply insulators according to IEC standards, ANSI standards,BS standards or customer specfications . porcelain glaze can be made as colour brown, light gray ,white or blue . Composite shed colour can be light grey or red . in the mean time , we also supply high quality tonghened glass insulators for domestic market and overseas market.

Dalian Hivolt Power System Co.,Ltd. is a reputable supplier ,we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price.We promise if any insulator from our company has quality defect , we will replace them at free charge in 12 months after receipt.We hope to set up a long term cooperation with you and enjoy the course together.
