Description:

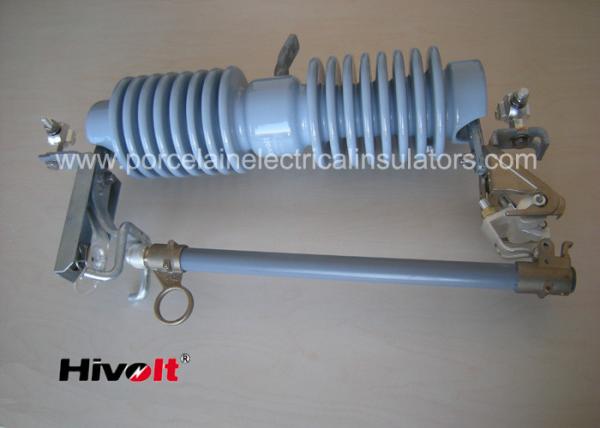

product name : Professional Certificated Dropout Fuse Cutout With Normal Rain Cover 34.5KV

Rated Voltage: 34.5 kV

Rated Current : 100A

Breaking Capacity : 8kA

(Symmetrical current interruption)

Power Frequency withstand voltage (dry) : 70kV

Impulse Voltage : 170 kV

Leakage distance : 680m

1) the dropout fuse cutout insulation body are high aluminum porcelain C-130 ,

2) a layer of shinning glaze covered on the body , color can be grey or brown .

3) the porcelain have excellent mechanical & electrical performance.

4) Conductive parts use material copper, bronze or brass , it depends on customer’s requirement.

4) The fuse cutout are suitable for 34.5KV lines .

Applications:

Used for distribution lines , suitable for wooden or steel cross arm

Competitive Advantage:

2 years quality insurance time are satisifed by most of customers.

to provide excellent product performance , we routine tested all porcelain body by 50% cantilever strength . for example 34.5kV dropout fuse cutout porcelain insulator Min. cantilever 15kN , we routine test 7.5kV withstand 10 seconds .

Dalian Hivolt Power System Co.,Ltd.  is a reputable insulator manufacturer . It was set up in year 1990 with product range of porcelain insulators , composite insulators ,and relevant metal fittings for transmission & distribution lines. We get power from more than 400 diligent staff and 50 experienced engineers .

we look the quality as our company Life ,and keep improving products quality . we strictly control the whole manufacturing process according to ISO 9001 : 2008 edition ,and focus on each quality details from raw material to insulators performance test .the powerful test facilities can make sure that each product under control.

We can supply insulators according to IEC standards, ANSI standards,BS standards or customer specfications . porcelain glaze can be made as colour brown, light gray ,white or blue . Composite shed colour can be light grey or red . in the mean time , we also supply high quality tonghened glass insulators for domestic market and overseas market.

Dalian Hivolt Power System Co.,Ltd. is a reputable supplier ,we have successfully supplied many kind of insulators to more 30 countries and regions due to reliable quality & reasonable price.We promise if any insulator from our company has quality defect , we will replace them at free charge in 12 months after receipt.We hope to set up a long term cooperation with you and enjoy the course together.
