1000kV 300kN composite long rod insulator ball & socket type
IEC61109 standard for EHV lines
Specifications:
| No. | Type | Specified mechanical load KN | Section Length H, mm | Minimum arcing Distance mm | Large Shed diameter | Small Shed diameter | Minimum Nominal Creepage Distance mm | Lightning Impulse Withstand Voltage kV | Wet Power Frequency Voltage kV |
| 1 | HFXBW-1000/300 | 300 | 9000±15 | / | 174 | 131 | 38300 | 3200 | 990 |
Description:

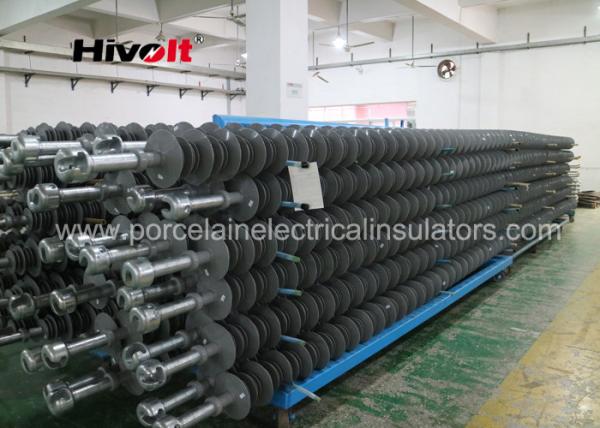

1000kV silicone rubber long rod insulators with mechanical strength
300kN which have below characters :
1 the metal fittings use high density forged steel , every piece of
fitting are tested by magnetic power test .
to guarantee each unit fittings have uniform structure and perfect
performance
The fittings surface are hot-dip galvanized meet related
international standard requirement
zinc thickness are more than 85um. according to IEC standard and
ASTM153 .
2 Long rod insulator shed are made with material of high
temperautre silicone rubber . the rubber component are specially
designed by ourself . it can provide high level both electrical &
mechanical performance .
3 insulator core are made of reinforced ERC FRP high density fiber
glass .
4 the 500kV silicone rubber lond rod insulator are ball & socket
connection according to IEC standard.
5 single insulator will be package with 1 carton drum .
6 the insulator shaping method is high pressure injection .
Applications:
the long rod insulator 1000kV 300kN are suitable for tension string
or suspension string in EHV transmission lines . 2 pcs corona rings
will be used together with long rod insulators , and assembled on
both end of insulators , it can even electrical field . increase
flashover voltage , protect transmission lines.
Competitive Advantage:
we offer 2 years quality guarantee period , good quality deserve
your trust !
The insulator have a very good self-cleaning performance . it is
easy for maintenance .
The insulator has big / small sheds profilr , which specially
designed for heavy pollution zone or coastal area .
We can design insulators based on customer’s requirement or special
technical specifications.
the fiber glass core material is ECR FRP rod , it is special used
for high voltage product instead of normal type.
