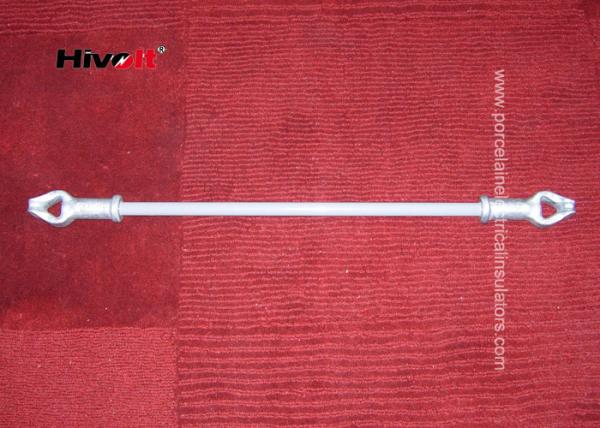

69kV composite long rod stay insulator color grey IEC61109 ,double
clevis type
Specifications:
| No. | Type | Specified mechanical load KN | Section Length H, mm | Minimum arcing Distance mm | Large Shed diameter | Small Shed diameter | Minimum Nominal Creepage Distance mm | Lightning Impulse Withstand Voltage kV | Wet Power Frequency Voltage kV |
| 1 | FXB-69/70 | 70 | 920±15 | 740 | / | / | 740 | / | 180 |
Description:
The long rod stay insulator have below characters:
1 metal fittings are made of forged steel , without any inner
defect . the cost are a little bit higher than cast steel , but it
can provide much reliable performance .
the metal fitting zinc coating are Min. 86um , meet related IEC and
ASTM standard .
2 the fiber glass core covered a layer of silicone rubber shealth .
normally such product will use UV proof painting instead of
silicone rubber . of course it can save some cost , but the product
electrical performance low down much . and painting is easy
removeable .
so our design will provide better service condition.
Applications:
the long rod stay insulator can be used as stay insulators at the
distribution line end , and also it can used as spacer for
transmission lines.
Competitive Advantage:
Advanced design will offer longer working life , and save the
utilities ' cost .
we offer 2 years up to 5 years quality insurance time .
forged steel metal fittings will never lead to failure due to
material defect .
the fiber glass core material is ECR FRP rod , it is special used
for high voltage product instead of normal type.
